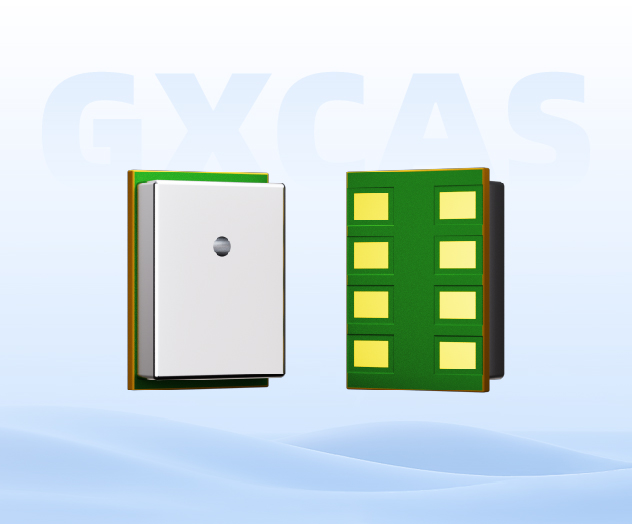

GXHTP01
1 Basic Performance
High humidity accuracy up to ± 3% RH
High temperature accuracy up to ± 0.3 ℃
• High pressure accuracy up to ± 0.3hPa (absolute accuracy)
• Supply voltage: 1.7V~3.6V
• Average power consumption: 0.4uA (temperature and humidity conversion once per second), 1.7uA (pressure conversion once per second)
• Standby power consumption: 0.6uA
Resolution: 0.01% RH, 0.01 ℃, 0.06Pa
• Scope of work: 0~100% RH@-40 ~85℃
Communication interface: I ² C
• Built in heater, adjustable power consumption (temperature and humidity section)
• MSL1
• Encapsulation information:
| Product Model | Package form | Package size (mm3) |
| GXHTP01A | LGA-8 | 4.7×6.7×1.75 |
2 Application Scenarios
• Car cabin
•Industrial control
• Smart Home
• Consumer electronics
• Medical devices
•GPS navigation
• Meteorological monitoring
3. Description
GXHTP01 is a high-precision, low-power digital sensor that integrates temperature, humidity, and air pressure measurement. The built-in heater can be turned on in anti condensation situations, and the heater power can be configured. It can be used for temperature, humidity, and air pressure measurement in consumer electronics, environmental, industrial, and instrumentation applications. GXHTP01 is packaged in LGA-8 with dimensions of 4.7mm × 6.7mm × 1.75mm.
Order Information
| Order number | Chip model | Package form | Standard packaging quantity | Note |
| GXHTP01A-Bu | GXHTP01A | LGA-8 (4.7mm*6.7mm) | 1000 | bulk |
Data Download
Product Parameters
| Package | LGA-8 | Size | 4.7mmx6.7mm |
|---|---|---|---|
| Interface | I2C | Temperature working range | 40℃~+85℃ |
| Humidity working range | 0~100%RH | Temperature accuracy | +0.3℃ |
| Humidity accuracy | ±3%RH | Pressure accuracy | ±0.3hPa |
| Working Voltage | 1.7V~3.6V | Power consumption | 0.4μA |
