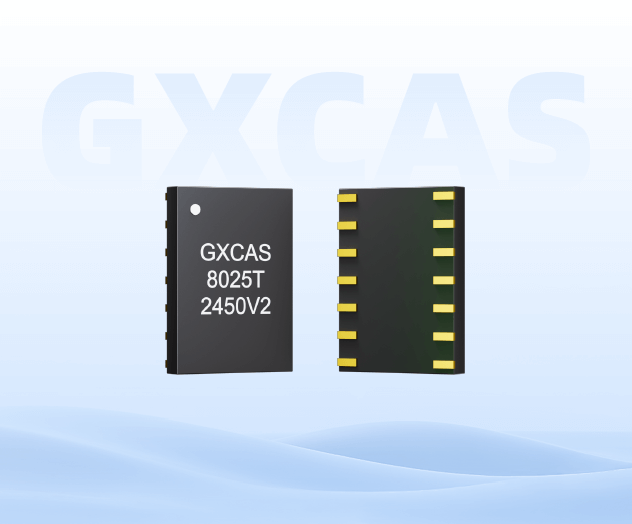

GX8025T

1 Basic Performance
• Built-in 32,768KHz DTCXO with high stability
• Supports I²C-Bus's high speed mode (400KHz)
• Timing alarm function (can be set: date, week, hour, minute)
• Fixed-cycle Timer Interrupt Function
• Clock update interrupt function (seconds, minutes)
• 32.768KHz clock output with OE function (FOE and FOUT pins)
• Auto correction of leap years (from 2000 to 2099)
• Wide interface voltage range: 1.6 V to 5.5 V
• Wide time-keeping voltage range: 1.2 V to 5.5 V
• Low current consumption: 0.8 µA/3 V (TYP)

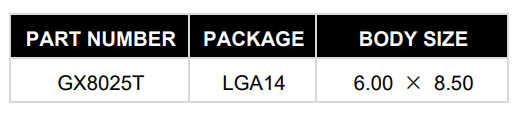

• Package Information：

2 Application Scenarios
• IoT devices
• Electric power sector
• Smart card
• Medical equipment
• Financial Transaction

3 Product Overview
This module is an I²C bus interface-compliant real-time clock which includes a 32.768KHz DTCXO that has been adjusted for high precision. In addition to providing a calendar (year, month, day, week, hour, minute, second) and a clock counter function, this module provides additional functions including an alarm function, fixed-cycle timer function, time update interrupt function and 32.768KHz output function. The module is fabricated via a C-MOS process for low current consumption and longer battery life.
