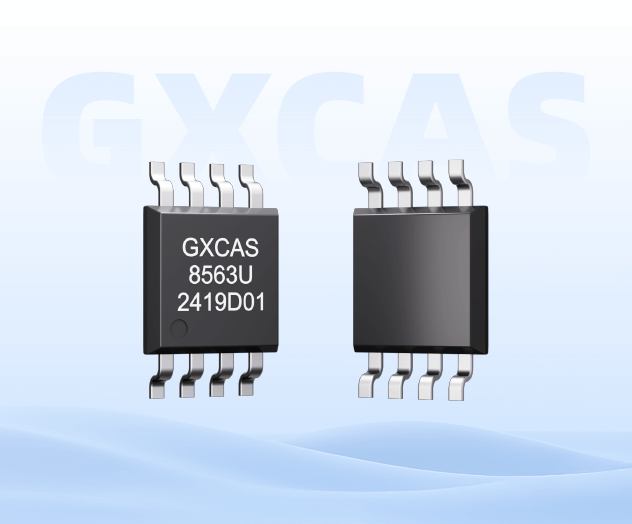

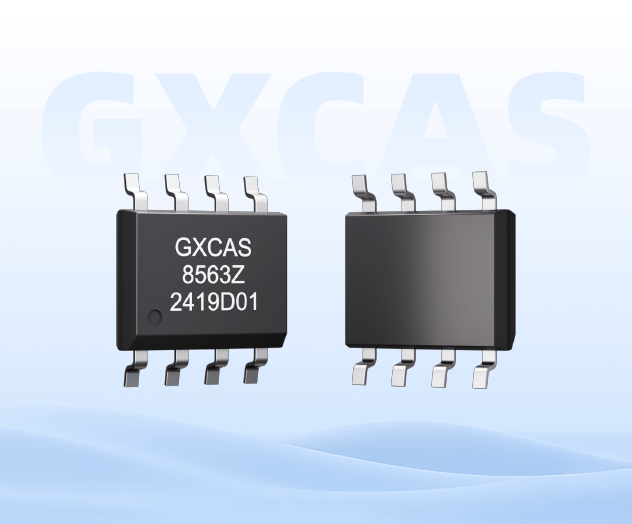

GX8563

1 Basic Performance
•Provide year, month, day, week, hour, minute, and second based on a 32.768kHz quartz crystal;
• Century Logo
•Clock operating voltage: 1.0 V to 5.5 V at room temperature
•Low standby current: The typical current value at VDD=3.0V and Tamb=25 ℃ is 0.25uA
•400kHz dual line I2C bus interface (VDD=1.8V to 5.5V)
•Programmable clock output for peripheral devices (32.768 kHz, 1.024 kHz, 32 Hz, and 1Hz);
• Alarm and timer functions
• Integrated oscillator capacitor
• Internal Power On Reset (POR)
• I2C bus slave address: read is A3h, write is A2h
• Open drain interrupt pin

2 Application Scenarios
• Mobile phone
• Convenient instrument
• Electronic metrology
• Battery powered products

3 Description
The GX8563 is a CMOS Real-Time Clock (RTC) and calendar optimized for low power consumption. A programmable clock output, interrupt output, and voltage-low detector are also provided. All addresses and data are transferred serially via a two-line bidirectional I2C-bus. Maximum bus speed is 400 kbit/s. The register address is incremented automatically after each written or read data byte.

Ordering Information
