GXU301

Basic performance
• Power supply voltage: 4.5V~5.5V
• OTP: 256Bytes
• Built in high-precision PGA
• Built in two high-resolution 24 bit ADCs
• Built in temperature sensor
• Support high and low clamp detection
• Flexible output interfaces: absolute voltage, proportional voltage SENT
• Wide operating temperature: -40 ° C~150 ° C
• Supports overvoltage and reverse protection from -20V to 20V

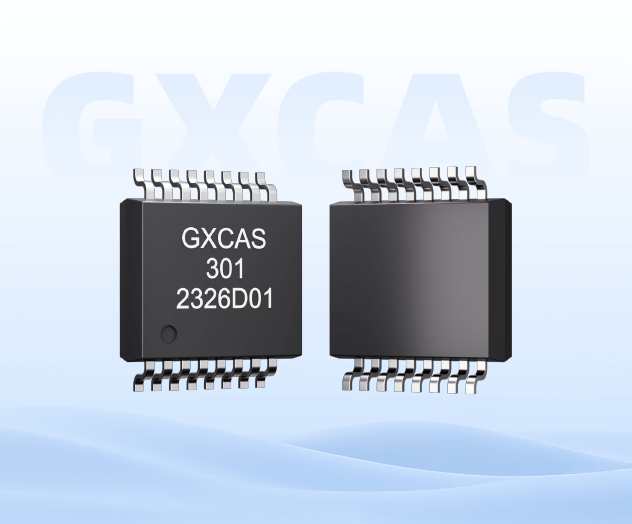

• Encapsulation: SSOP16
• Compliant with RoHS directive and free of hazardous substances
• Compliant with AEC-Q100 Grade 0 standard

Application
• Automotive pressure sensors and various capacitive interface sensors
• Automotive pressure switch

Description
GXU301 is a sensor interface chip used for temperature and air pressure measurement. This chip can drive capacitive pressure sensors and output calibrated pressure data directly through internal high-resolution ADC, temperature compensation, and pressure compensation. The chip supports multiple output interface types, such as SENT, absolute voltage, and proportional voltage. The chip supports power overvoltage and reverse connection protection, and can operate over a wide temperature range of up to 150 ° C, making it suitable for harsh automotive environments.
