GX2401

Characteristics
●External power supply range: 2.8V to 6.0V
●Multiple GX2401 can be connected to a common 1-Wire ®  Bus chip
●Factory engraved and tested 64 bit registration code (8-bit family code+48 bit sequence code+8-bit CRC check code); ●Ensure that no two devices have the same registration code
●Internal multi-point controller ensures compatibility with other 1-Wire network products
●The 8-bit family code indicates that GX2401 communication requires a reading device
●When the reading device is powered on for the first time, it will generate an online pulse response

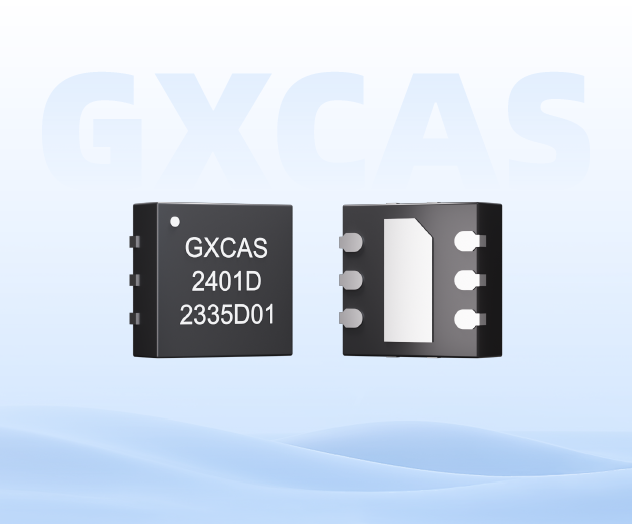

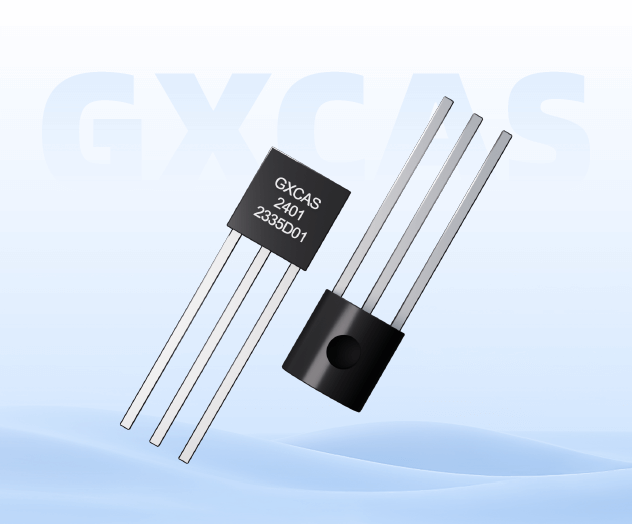

●Low cost TO-92 and DFN6 surface mount packaging
● Integrate control, address, data, and power into one pin
● Zero standby power supply
●Directly connected to one port of the microprocessor, with a communication speed of 16.3kbps
● Working in an extended industrial temperature range: -40 ° C to+125 ° C

Application
- PCB identification
- Network node ID
- Device registration

Description
GX2401 uses a single bus protocol to communicate with the upper computer, requiring only one signal line and one ground line. Each GX2401 has a 64 bit serial number, which allows multiple GX2401s to be connected in series on the same single bus for networking. With just one processor, multiple GX2401s distributed over a large area can be controlled.
