GXS2405

Basic performance
•112 byte programmable EEPROM

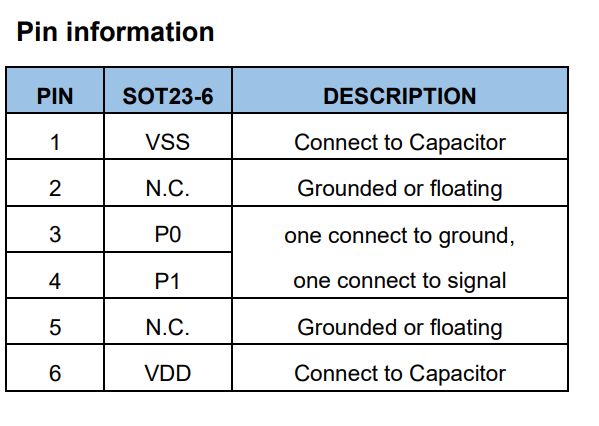

• Non polarized, signal and ground pins can be interchanged
•64 bit registration code that has been verified (8-bit family code+48 bit serial number+8-bit CRC checksum)
•Integrate control, addressing, data, and power into one data pin
•Directly connected to a single port pin of the microprocessor and communicating at a speed of up to 15.3k bits per second
•The 8-digit family code indicates that the read is GXS2405
•The host can determine whether there is a chip by detecting the response signal

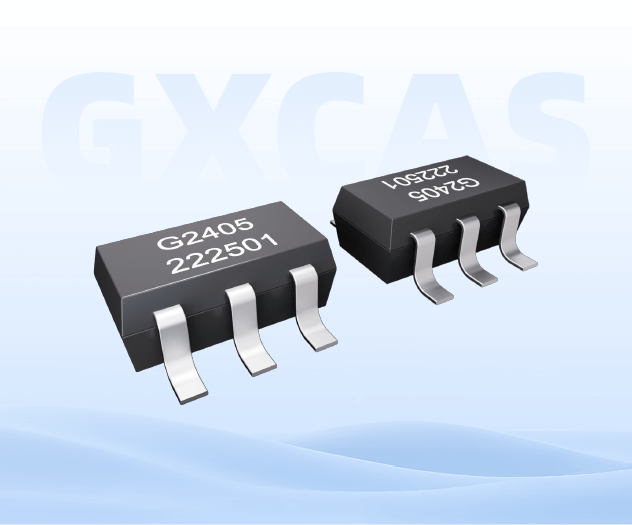

•Adopting SOT23-6 surface mount packaging
•Read and write operations can be performed within a wide voltage range of 3V to 5.5V in the temperature range of -40 ° C to+85 ° C

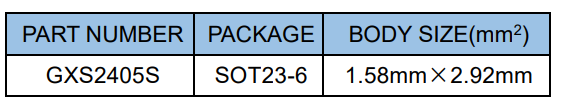

• Package information:
