GX28EC20

feature
•  80 * 32 byte EEPROM
•  32 byte Scratchpad
• + 200k write/erase cycle durability at 25 ° C
•  Unique factory programming 64 bit ROM
•  interface design
•  Communicate at speeds of 15.4kbps or 90kbps

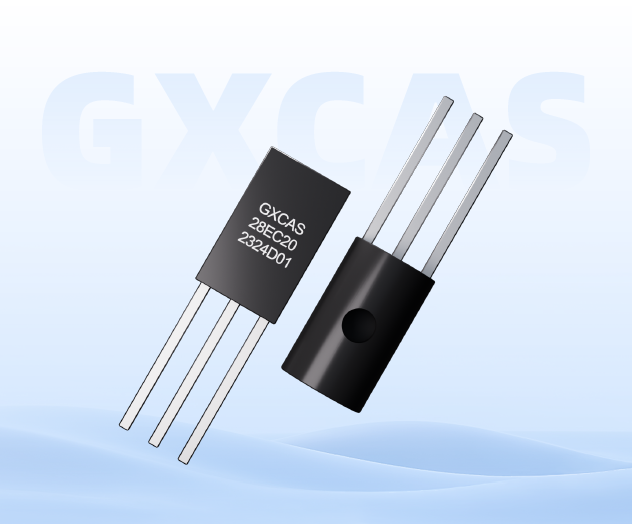

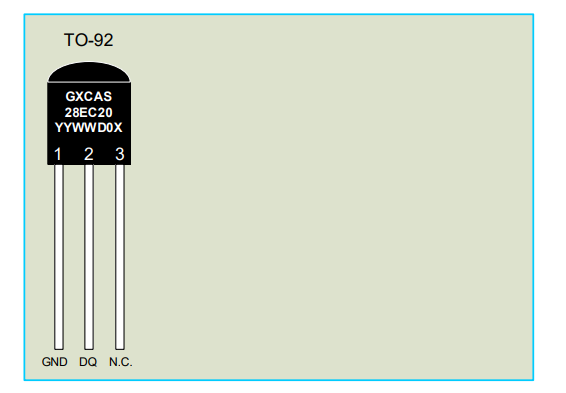

•  Low cost TO-92L packaging
•  Operating Range: 2.5V to 5.5V, -40°C to +85°C
•  ESD 8kV for I/O Pin

application
•Device Authentication
•IEEE 1451.4 Sensor TEDS Ink Cartridge
•Medical sensors
•PCB identification
•Wireless Base Stations

Description
The GX28EC20 contains a 20480 bit (80 * 32 byte) 1-Wire EEPROM. There is also a 32 byte draft line. As a special feature, a block of eight storage pages can be write protected or placed in EPROM emulation mode, in which the bits can only change from a 1 state to a 0 state. GX28EC20 communicates through 1-Wire bus. Communication follows the standard 1-Wire protocol. Each device has its own unchangeable 64 bit ROM registration number. The registration number is used to address devices in a multi-point 1-Wire network environment.
