GX2402

Basic performance
• Programmable memory (EEPROM) and 64 bit one-time programmable application registers
•64 bit registration code (8-bit family code+48 bit serial number+8-bit CRC checksum) that has been factory etched and tested
•Built in multi-point controller ensures device compatibility with other MicroLAN bus products
•EEPROM is organized by page, with 32 bytes per page, and can be accessed randomly
•Integrate control, addressing, data, and power into one data pin
•Directly connected to a single port pin of the microprocessor and communicating at a speed of up to 15.3k bits per second
•The 8-bit family code indicates that GX2402 is being read
•The host can determine whether there is a chip by detecting the response signal

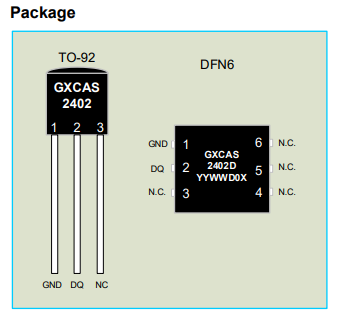

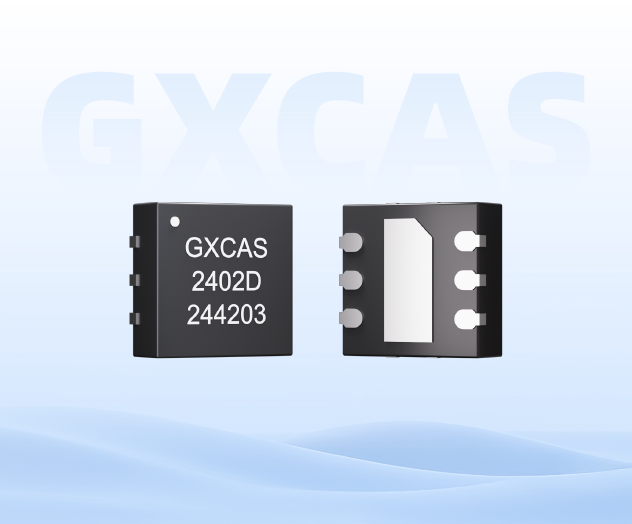

• Adopting low-cost TO-92 or 6-pin DFN surface mount packaging
•Read and write operations can be performed within a wide voltage range of 2.5V to 5.5V in the temperature range of -40 ° C to+85 ° C
