GXE00

Features
• Read Only Memory(EEPROM) plus 64-bit one-time programmable application register Unique, factory-lasered and tested 64-bit registration number (8-bit family code + 48-bit serial number + 8-bit CRC tester) assures absolute identity because no two parts are alike
• Built-in multidrop controller ensures compatibility with other MicroLAN products
• EEPROM organized as one page of 32 bytes for random access
• Reduces control, address, data, and power to a single data pin
• Directly connects to a single port pin of a microprocessor and communicates at up to 15.3kbits per second
• 8-bit family code specifies GXE00 communication requirements to reader
• Presence detector acknowledges when reader first applies voltage

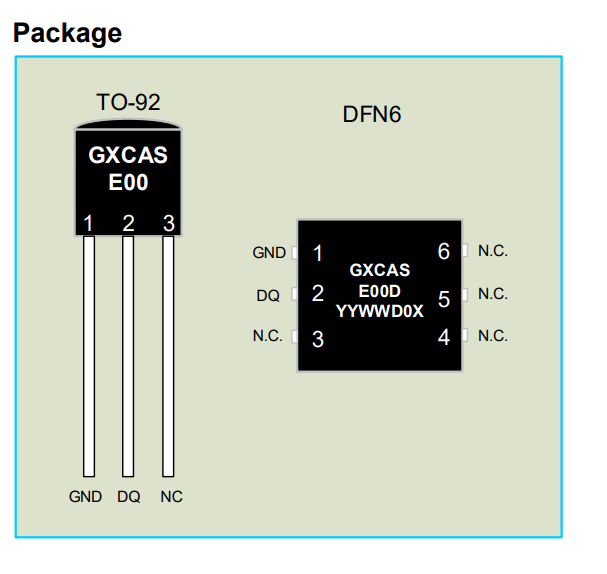

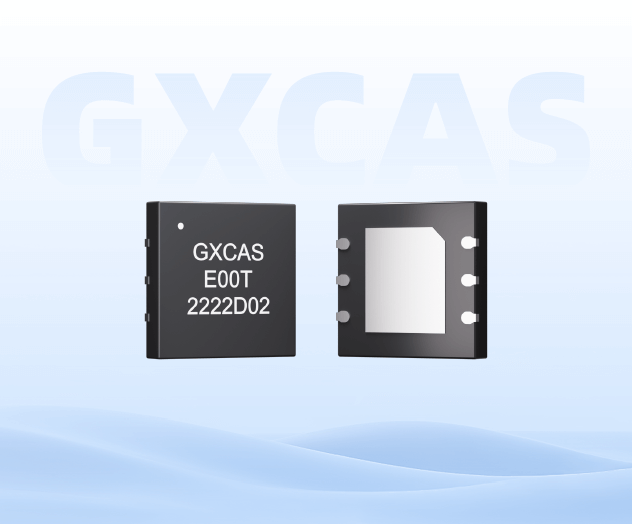

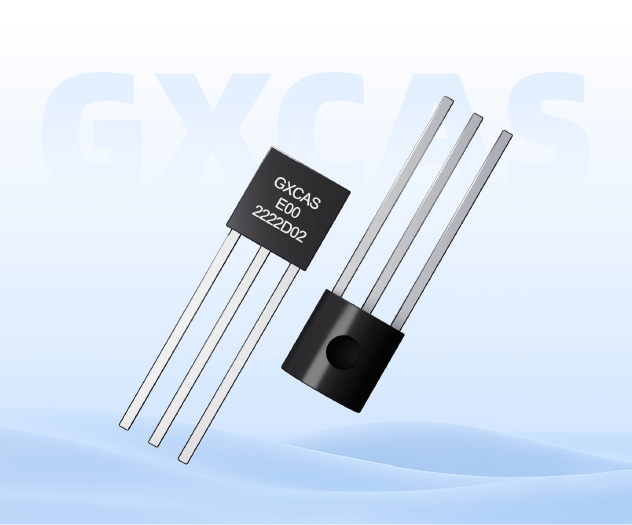

• Low cost TO-92 or 6-pin DFN surface mount package
• Reads and writes over a wide voltage range of 2.5V to 5.5V from -40°C to +85°C
