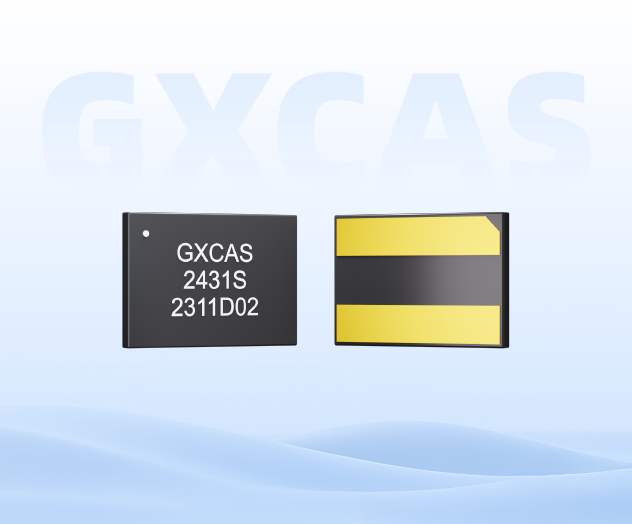

GX2431

1.Basic performance
•Using a single bus interface, only one port pin is needed for communication
•Each chip has a 64 bit serial number
•1024 bit EEPROM memory, divided into four pages with 256 bits per page.
• Independent memory page, can be permanently write protected or set to EPROM emulation mode (can only write 0)
•No need for peripheral components
•Powered through a data cable, with a voltage range of 2.5V~5.5V
•The temperature range for reading and writing data is -55 ℃~+125 ℃
• Super electrostatic protection capability: HBM800V MM800V
•According to the 1-Wire protocol, communicate with the host using a separate digital signal at speeds of 15.4kbps or 125kbps

Application
• Host accessories/PCB board identification
• Storage of medical device parameters
• Analog sensor calibration
• Ink cartridge/toner print cartridge recognition
• After sales management of consumer products
• BMS product parameter storage

Description
GX2431 is an EEPROM that communicates with the host using a standard single bus protocol and has a storage capacity of 1024 bits. Composed of four memory pages with 256 bits per page. The data is first written into an 8-byte register, verified to be correct, and then copied to EEPROM memory. Its characteristic is that the four memory pages are independent of each other and can be individually set to write protect or EPROM emulation mode. In EPROM storage mode, the state of all bits can only change from 1 to 0. GX2431 communicates through a 1-Wire bus. The communication adopts the standard 1-Wire protocol. Each device has a unique and unchangeable 64 bit ROM address code, which is written into the chip by factory lithography. In a multi-point 1-Wire network environment, this address code is used to address devices.
