GXA3485

1 Basic Performance
• Supports 2.7V-5V power supply
•Ensure a data rate of 12Mbps
•Low power shutdown mode
• Common mode input voltage range from -7V to+12V
•Half duplex, allowing up to 256 transceivers to be connected to the bus
•Driver short-circuit overcurrent protection
•RS-485 I/O pin ESD protection level ± 15kV HBM
• Package information:

2 Application
•Industrial control
• Communication field
• Local Area Network
• Transceiver for electromagnetic interference sensitive applications
• Encoder interface

 3. Description
GXA3485 is a low-power transceiver used for ± 15kV electrostatic discharge (ESD) protection of RS-485 and RS-422, supporting a voltage range of 2.7V-5V. Each device includes a driver and a receiver. The transmission speed can reach up to 12Mbps. The driver has a short-circuit current limiting function. The receiver input has a fail safe function. If both inputs of the receiver are open, the output is guaranteed to be at a logic high level.

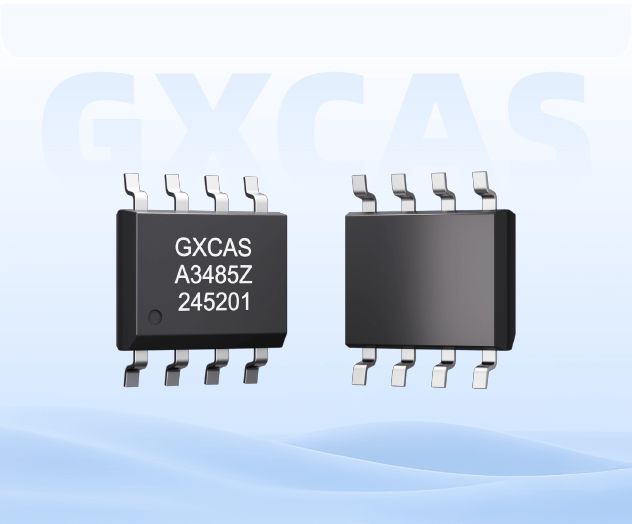

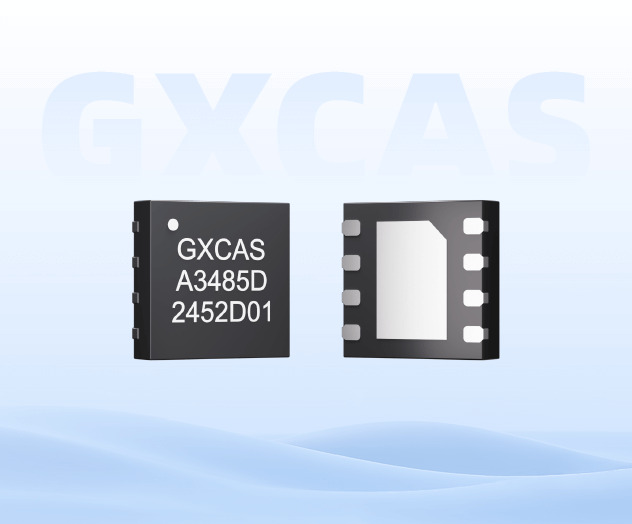

GXA3485 supports SOP-8, MSOP-8, and DFN-8 packages. GXA3485 is designed for half duplex communication, with 1/8 unit load, allowing up to 256 GXA3485 transceivers to be connected to the same bus. It can achieve data transmission up to 12Mbps.
