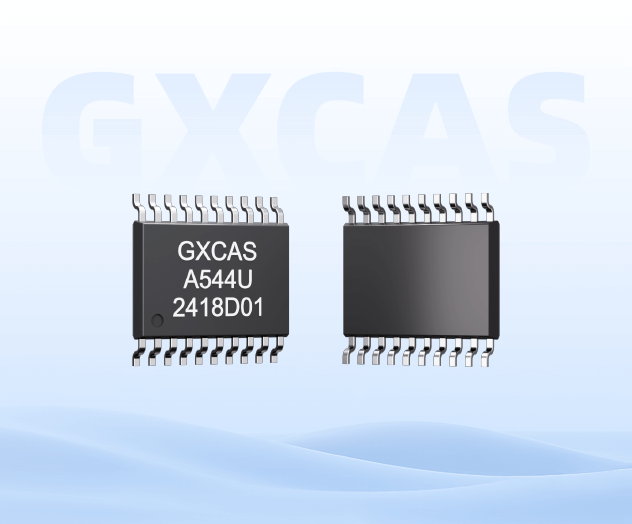

GXA544

1 Basic Performance
• Compatible with SMBus and I2C communication protocols
• Supports bus communication frequency of 0~1MHz
• Supports 4-channel bidirectional data transmission
• Supports 2-channel unidirectional low effective interrupt signal INT transmission
• Has 3 slave address selection pins
• Allow cross voltage domain data transmission
• Low on resistance, low idle current
• Power supply voltage: 1.65V~5.5V
• Supports hot plugging of devices
• Encapsulation information:

2 Application Scenarios
• Server
• Router
•I2C devices with slave address conflicts

3. Chip Overview
GXA544 is a 4-channel bidirectional data transmission switch chip controlled by I2C bus. The upstream host selects one or more downstream slaves through the SCL and SDA pins of the chip and performs specified data transmission. GXA544 supports selecting any combination of downstream channel slaves.
GXA544 provides 4 interrupt input pins INTX for transmitting low effective interrupt signals of corresponding channels; The chip also provides an INT interrupt output pin, which outputs the AND result of each INTX pin mentioned above.
GXA544 allows upstream hosts and downstream slaves to perform cross voltage domain data transmission, where the power supply voltage VCC of GXA544 limits the minimum voltage VPASS allowed for upstream and downstream transmission. This function enables data exchange between upstream and downstream devices in the voltage domains of 1.8V, 3.3V, and 5.0V without the need for additional protection. When using this function, it is necessary to ensure that the I2C buses of each upstream and downstream channel are connected to their respective power supply voltages through pull-up resistors RP. The withstand voltage value of all pins of GXA544 is 5.5V.
