GXHTV4

1 Basic Performance
Humidity accuracy: ± 2.5% RH
Temperature accuracy: ± 0.2 ℃
• Power supply voltage: 1.6V~5.5V
• Average power consumption: 0.4uA (converted once per second)
• Standby power consumption: 0.1uA
Resolution: 0.01% RH, 0.01 ℃
• Scope of work: 0~100% RH @ -40~125 ℃
Communication interface: I ² C, up to 1MHz
• Built in heater, adjustable power consumption
• Support NIST traceability
• Meets JEDEC JESD47 standard
• Package information:

2 Application
• Car cabin
• Industrial control
• Smart Home
• Consumer electronics
• Medical devices

3 . Description

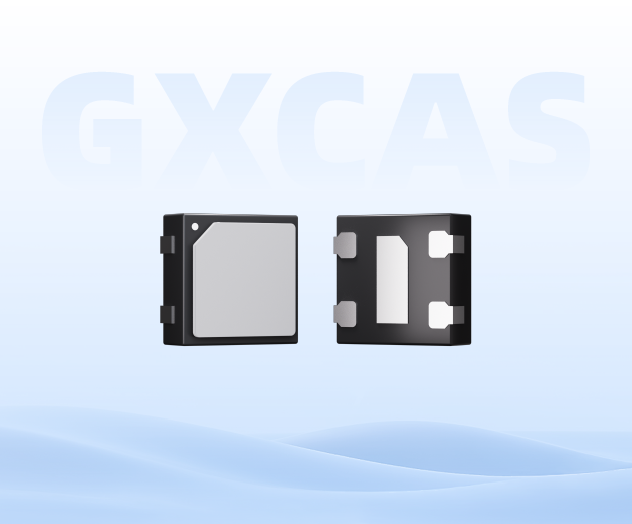

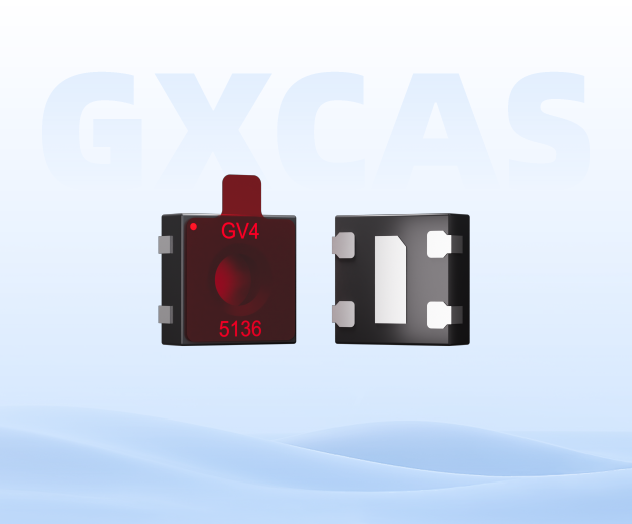

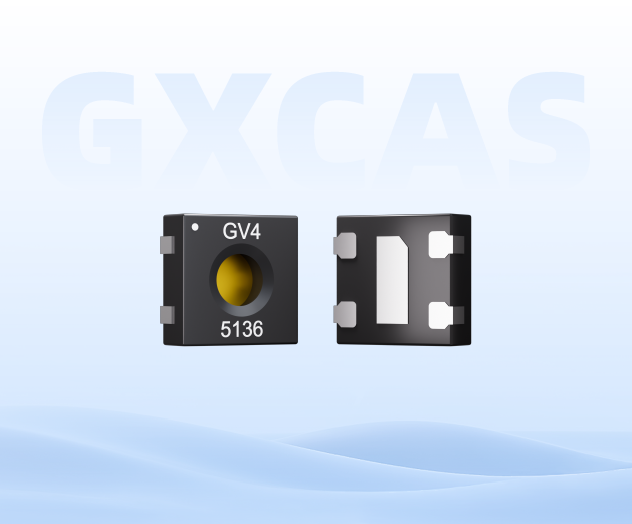

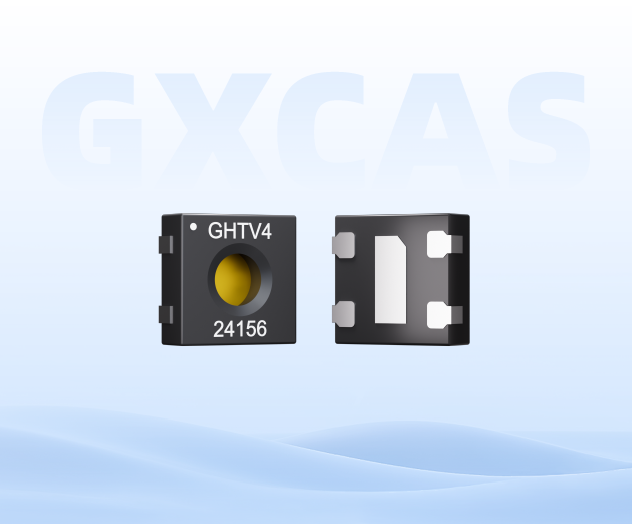

GXHTV4 is a new-generation single-chip integrated temperature and humidity sensor of Galaxy-CAS, which can offer configurable I²C addresses. The built-in heater can be activated in anti-dew occasions, and the heater power is configurable.

The four-pin dual-flat-no-leads package is suitable for surface mount technology (SMT) processing.
