GXHT40

1 Basic Performance
•High humidity accuracy up to ± 1% RH
•High temperature accuracy up to ± 0.1 ℃
• Power supply voltage: 1.6V~5.5V
• Average power consumption: 0.4uA (converted once per second)
• Standby power consumption: 0.1uA
•Resolution: 0.01% RH, 0.01 ℃
• Scope of work: 0~100% RH @ -40~125 ℃
•Communication interface: I ² C, up to 1MHz, 2 I ² C addresses
• Built in heater, adjustable power consumption
• Support NIST traceability
• Meets JEDEC JESD47 standard
• Package Information:

2 Application
• Automotive cabin
• Industrial control
• Smart home
• Consumer electronics
• Medical devices

3. Description
GXHT4x is a new generation single-chip integrated temperature and humidity sensor from Zhongke Galaxy Chip, which can provide configurable I ² C addresses; The built-in heater can be turned on in anti condensation situations, and the heater power can be configured.
The GXHT4x adopts a 4-pin DFN package, suitable for standard SMT mounting processes.

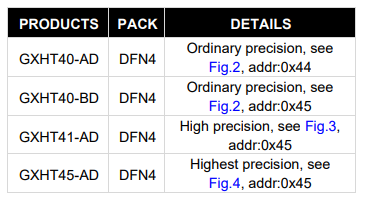

Ordering Information
