GXHT31

1 Basic Performance
•Full temperature and humidity range calibration and temperature compensation digital output
•Wide power supply voltage range, from 2.0V to 5.5V
•I ² C interface, communication speed up to 1MHz
•Two user selectable addresses
•The typical accuracy of GXHT31 is ± 2% RH and ± 0.2 ℃
•Single chip integrated temperature and humidity sensor
• High reliability and long-term stability
•Measure relative humidity within the range of 0-100%
•Measure the temperature within the range of -45 ℃ to 130 ℃
• Integrated 16 bit high-precision ADC
•Measurement time as low as 2.5ms
•GXHT31-Q has passed AEC-Q100 automotive grade certification

2 Application Scenarios
• Communication equipment
• Photovoltaic energy storage
• Consumer electronics
• Cold chain transportation
• Smart Home
• Smart Agriculture

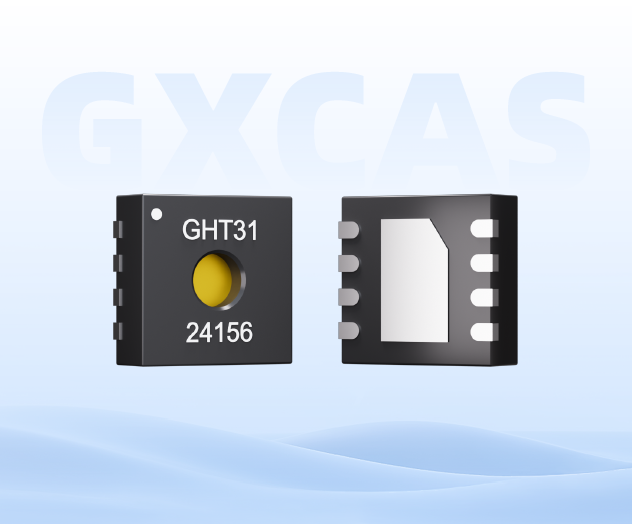

Figure 1 GXHT31 chip rendering

3. Chip Overview
GXHT31 is a new generation single-chip integrated temperature and humidity sensor developed by Zhongke Galaxy Chip. It is developed based on the Zhongke Galaxy chip extremely weak signal detection design platform and MEMS process design platform. Integrating high-sensitivity MEMS humidity sensors on silicon-based CMOS wafers can reduce interference in multi chip signal transmission, decrease chip area, and improve packaging reliability.
It has two I ² C addresses for users to choose from, with a communication speed of up to 1MHz. The chip is packaged in a miniaturized DFN, with dimensions of 2.5mm x 2.5mm and a height of 0.9mm, which allows the GXHT31 to be integrated into various applications. In addition, the wide supply voltage range of 2.0V~5.5V allows it to adapt to various power supply environments.
