GXHT31A

1 Basic Performance
•Passed AEC-Q100 automotive grade certification
•Full temperature and humidity range calibration and temperature compensation analog output
•Wide power supply voltage range, from 2.0V to 5.5V
•Linear analog voltage output within the range of 10% - 90%
•Temperature measurement range -45 ℃~+130 ℃
•The typical accuracy of GXHT31A is ± 2% RH and ± 0.2 ℃
•Measure temperature and humidity separately in parallel, and output them through different pins
•Single chip integrated temperature and humidity sensor
•High reliability and long-term stability
•DFN8 package
•GXHT31A-Q has passed AEC-Q100 automotive grade certification

2 Application Scenarios
• Communication equipment
• Photovoltaic energy storage
• Consumer electronics
•Cold chain transportation
• Smart Home
•Smart Agriculture

3. Chip Overview

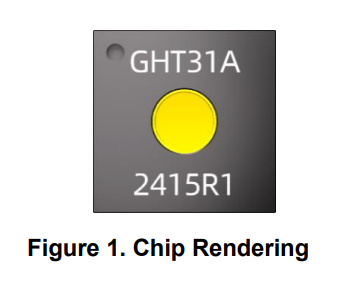

GXHT31A is a new generation single-chip integrated temperature and humidity sensor developed by Zhongke Galaxy Chip. It is developed based on the Zhongke Galaxy chip extremely weak signal detection design platform and MEMS process design platform. Integrating high-sensitivity MEMS humidity sensors on silicon-based CMOS wafers can reduce interference in multi chip signal transmission, decrease chip area, and improve packaging reliability. The chip adopts a miniaturized DFN package with an external size of 2.5mm x2.5mm and a height of 0.9mm, which enables GXHT31A to be integrated in various applications. In addition, the wide supply voltage range of 2.0V~5.5V allows it to adapt to various power supply environments.
