GXHT3W

1 Basic Performance
• Supports single bus communication protocol
•Wide operating voltage range (2.4V-5.5V)
•DFN8 package (2.5 × 2.5 × 0.9mm3)
•Typical accuracy: humidity ± 3% RH, temperature ± 0.3 ℃
• Measurement range: humidity 0~100% RH, temperature -45 ° C~130 ° C
• Factory calibration, supports reflow soldering
• Equipped with multi-point distributed temperature and humidity measurement function
• Has user-defined non-volatile temperature alarm settings


2 Application
• Communication equipment
• Photovoltaic energy storage
• Consumer electronics
• Cold chain transportation
• Smart Home

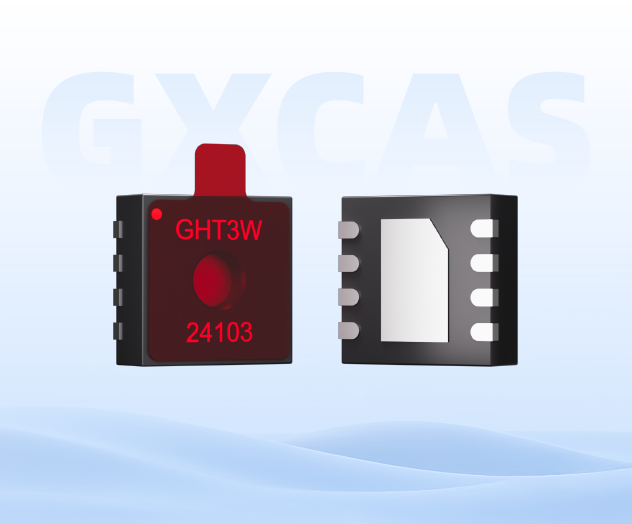

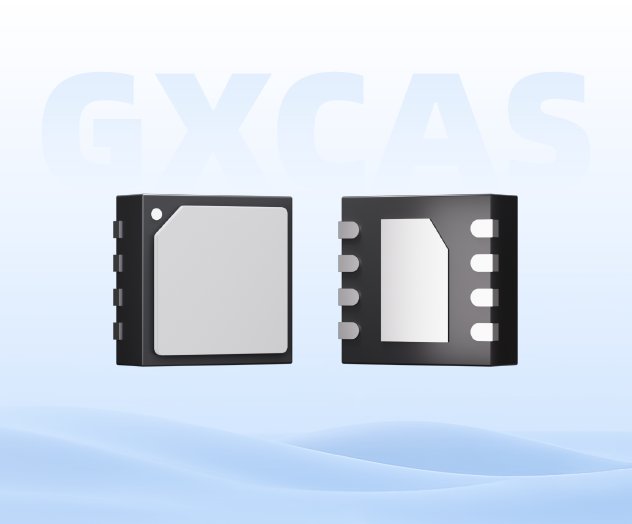

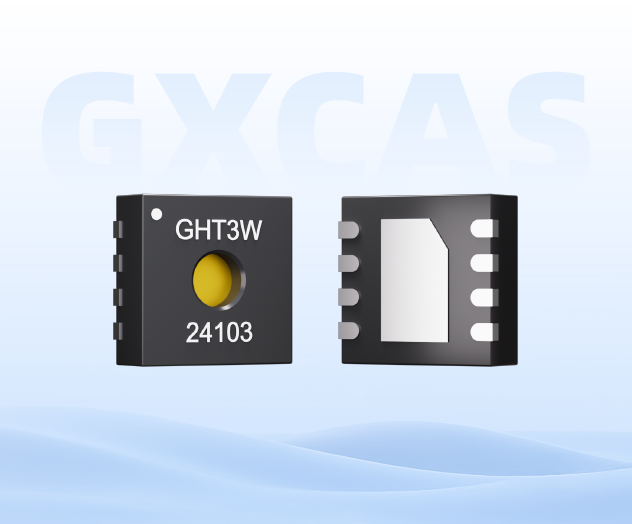

Figure 1 GXHT3W chip rendering

3 . Description
The GXHT3W is a new generation of single-chip integrated temperature and humidity sensor, which integrates high-sensitivity MEMS humidity-sensitive components on silicon-based CMOS wafers, thereby reducing signal transmission interference, reducing device area and improving product reliability. The GXHT3W uses 1-Wire protocol to communicate with the host computer, only one signal wire and one ground wire are needed. It has a temperature measurement range of -45°C ~ +130°C. The test accuracy in the range of -40°C ~ +90°C is ±0.3°C. In addition, it can also work in parasitic mode and supply power to the device directly through the signal line, no additional power supply is required. Each GXHT3W has a globally unique 64-bit serial number. Multiple GXHT3Ws can be connected in series on the same 1-Wire for networking. One processor can control multiple GXHT3Ws distributed in a large area. This networking method is especially suitable for HVAC environmental control, construction, equipment, grain condition and industry, and process temperature and humidity monitoring and control.
