GX122

Basic performance
• Digital output: SPI compatible interface
• Programmable resolution: 9 to 12 bits + sign bit
• Accuracy：±0.3℃ -25℃～+85℃（typical）
±0.5℃ -40℃～+125℃（typical）
• Low quiescent current：50μA
• Wide range of power supply：2.7V to 5.5V
• Small SOT23-6 package
• Can operate at 150°C
• Programmable high/low setpoints

Application
• Automotive pressure sensors
• Power supply temperature monitoring
• Computer peripheral thermal protection
• Laptop computer
• Mobile phone
• Battery management
• Office machines
•Thermostat control
• Environmental monitoring and HVAC

Chip Overview

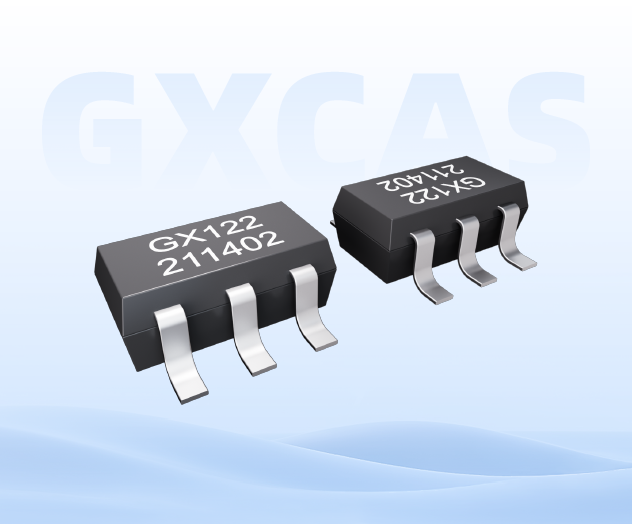

GX122 is an SPI compatible temperature sensor with SOT23-6 packaging. The GX122 temperature sensor only requires a pull-up resistor to achieve a typical accuracy of 0.3 ℃ in the temperature range of -25 ℃ to+85 ℃, with a working temperature of up to 150 ℃. Programmable resolution, programmable settings, and shutdown functionality provide versatility for any application. The low power supply current and power range from 2.7V to 5.5V make GX122 an excellent candidate for low-power applications. GX122 is an ideal choice for expanding thermal measurement in various communication, computer, consumer, environmental, industrial, and instrumentation applications
