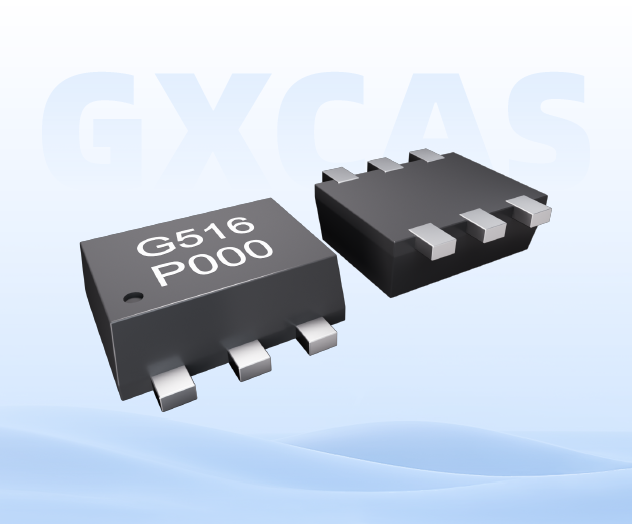

GXT516

1 Basic Performance
• No need for any external components
•Factory programming threshold temperature
•Threshold accuracy: ± 0.5 ° C
• Optional hysteresis: 2 ° C, 5 ° C, 10 ° C
• Working temperature: -55 ° C~+150 ° C
•Power supply voltage: 1.6V~5.5V
•Static current: 16 μ A
• Open leakage output (GXT511/GXT513/GXT515)
•Push pull output (GXT512/GXT514/GXT516)

2 Application Scenarios
•Thermostat
•Fan control
• Equipment thermal protection

3. Chip Overview
The GXT51x is a fully-integrated temperature switch that provides overheat or undercooling alarm without any external components. The GXT511/513/515 are active-low open-drain outputs; The GXT512/514/516 are active-high push-pull outputs. The thresholds of the GXT51x are pre-programmed by the factory, supporting sixteen standard temperatures from -45°C to +115°C with a step size of 10°C. For any non-standard temperature within the range of -55°C to +127°C with a step size of 1°C, please consult the rel-evant sales staff for customized solutions.
