GX0011

1 Basic Performance
•Can directly replace NTC thermistor
•Temperature measurement accuracy: ± 1.0 ° C (-40 ° C~125 ° C)
•Power supply voltage: 1.4V~5.5V
• Working temperature: -50 ° C~+150 ° C
• Conversion current: 30 μ A
•Resolution: 12 bits (0.0625 ° C)
•Communication interface: pulse counting

2 Application Scenarios
• Temperature probe
• Consumer electronics
•White goods
• Industrial control

3. Chip Overview
GX0011 is a fully integrated digital temperature sensor, which can achieve 12-bit (0.0625°C) temperature output without any external temperature sensing unit.

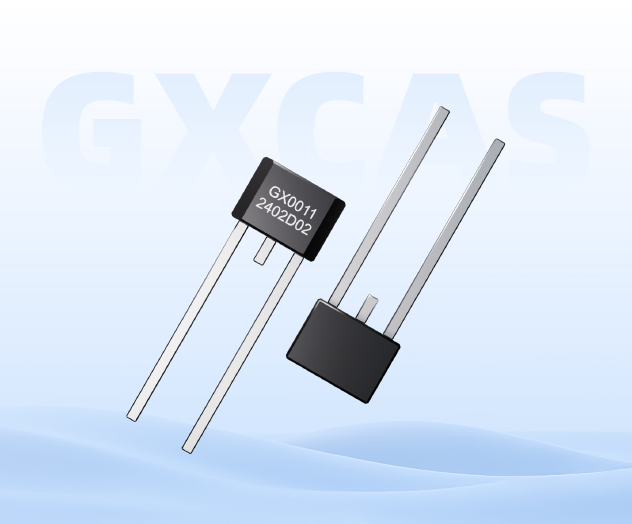

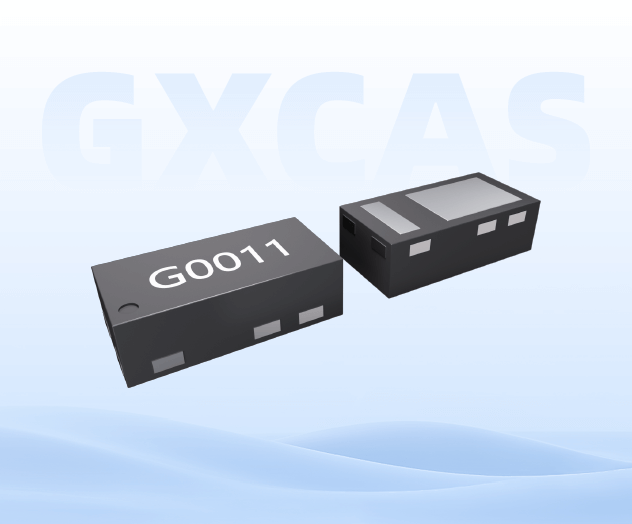

The GX0011 comes in the DFN-2 and TO-92S packages, making it a direct replacement for the NTC thermistor and much easier to use.
The GX0011 supports one-line pulse counting communication. Only a single signal line is needed to complete the chip power supply and communication output function at the same time.

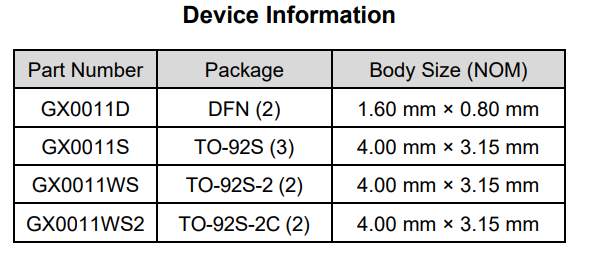

Order Information
