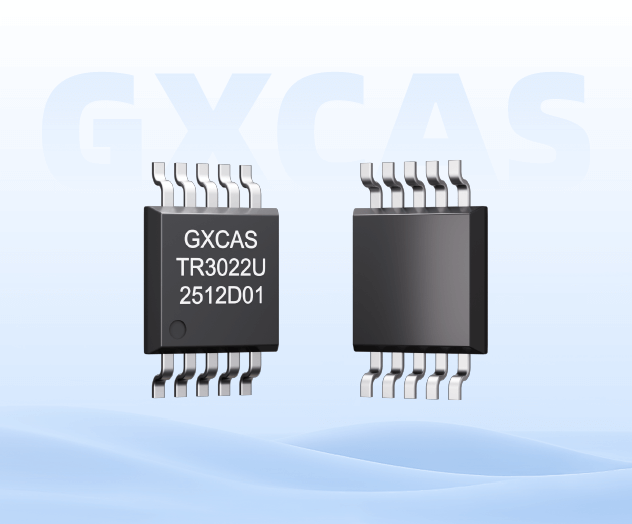

GXTR3022

1 Basic Performance
Temperature measurement range: -55 ℃~+150 ℃
Temperature measurement accuracy: (-40 ℃~+125 ℃)
Local channel: ± 1 ℃
Remote channel: ± 1 ℃
Temperature measurement resolution: 0.0625 ℃, 12bits
Single channel conversion time: 16ms
• Digital output: compatible with SMBus and I2C interfaces
Power supply voltage: 2.7V~5.5V
Low static current (3.3V, 27 ℃)
Average current: 16 μ A (0.0625Hz)/45 μ A (1Hz)/90 μ A (4Hz)
Local channel: 180 μ A
Remote channel: 380 μ A
Off mode: 0.4 μ A
Remote temperature measurement: with functions such as series resistance elimination, η factor correction, β value detection and compensation, digital filtering, open circuit detection, etc

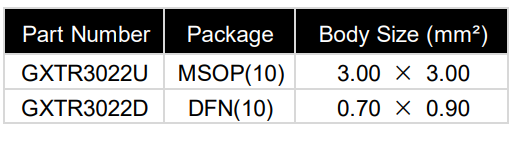

• Encapsulation information:



2 Application
•MCU, GPU, FPGA, DSP, and CPU temperature monitoring medical equipment
• Server, computer, switch
• Highly integrated medical system


3. Description
GXTR3022 is a high-precision, low-power digital temperature sensor compatible with SMBus and I2C interfaces. In addition to the local temperature where the chip is located, up to 2 remote temperature probes can be monitored simultaneously for remote temperature in the area where they are located. GXTR3022 has functions such as series resistance elimination, programmable η factor correction, β value detection and automatic compensation, and programmable temperature threshold, providing a high-precision, low-power and reliable temperature monitoring solution.
GXTR3022 is particularly suitable for temperature measurement using remote transistors (NPN/PNP Type) integrated into servers and processors under advanced process technology. GXTR3022 supports automatic compensation for PNP with 0.09<β<21.36 and transistor connections to achieve high-precision temperature measurement.

Ordering Information
