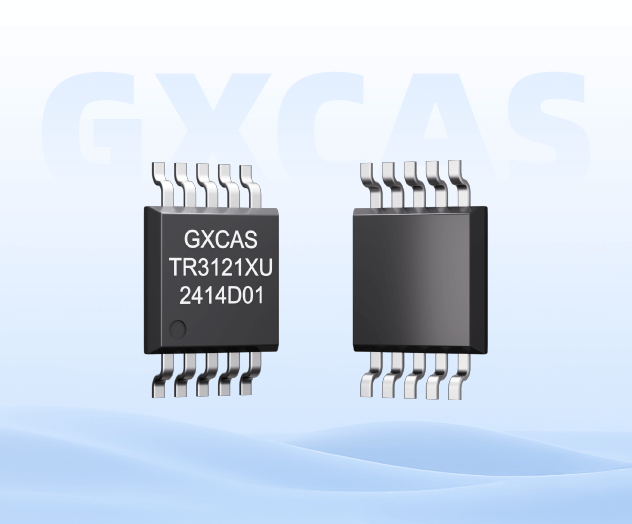

GXTR3121

1 Basic Performance
•Multi channel temperature measurement:
GXTR3111:1 Local Channel&1 Remote Channel
GXTR3121:1 Local Channel&2 Remote Channel
Temperature measurement range: -55 ° C~+150 ° C (local&remote channels)
• Temperature measurement accuracy:
Local channel: ± 0.5 ° C (-40 ° C~+125 ° C)
Remote channel: ± 1 ° C (-40 ° C~+125 ° C)
• Packaging form:
GXTR3111：8-Pin MSOP
GXTR3121：10-Pin MSOP
• Package size: 3.00 mm × 3.00 mm
•Power supply voltage: 2.7V~5.5V
•Low static current (@ 3.3V, 27 ° C)
•Local channel: 230 μ A
•Remote mode: 630 μ A
•Off mode: 2 μ A
•Resolution: 16 bits, 0.00390625 ° C
• Digital output: compatible with SMBus and I2C interfaces
•Remote diode: It has functions such as series resistance elimination, η factor correction, β value detection and automatic compensation, and open/short circuit detection

2 Application Scenarios
• Server, processor FPGA
•Desktop and laptop computers
• Storage Area Network (SAN)
• General temperature measurement:
•Industrial Control
- Testing equipment

3 . Chip Overview
The GXTR31X1 series is a high-precision, low-power digital temperature sensor compatible with SMBus and I2C interfaces. In addition to the local temperature where the chip is located, up to 1 (GXTR3111)/2 (GXTR3121) remote temperature probes can be monitored simultaneously for remote temperature in the area where they are located.
The GXTR31X1 series has functions such as series resistance elimination, programmable η factor correction, β value detection and automatic compensation, and programmable temperature threshold, providing a high-precision, low-power and reliable temperature monitoring solution. The GXTR31X1 series is particularly suitable for temperature measurement using remote transistors (NPN/PNP Type) integrated into servers and processors under advanced manufacturing processes. The GXTR31X1 series supports compensation for PNP with 0.09<β<21.36 and transistor connections to achieve high-precision temperature measurement.
The typical temperature measurement accuracy values for the local and remote channels of the GXTR31X1 series are ± 0.5 ° C and ± 1 ° C, respectively, and both provide a temperature measurement resolution of 0.00390625 ° C and a temperature measurement range of -55~+150 ° C. The GXTR31X1 series has a power supply voltage range of 2.7~5.5V and offers a 3mm x 3mm 8/10 pin MSOP package for integration into various systems.
