GXTR304

1 Basic Performance
• Temperature sensor for remote four channel diode temperature measurement
• Temperature measurement range: -55 ° C~+150 ° C
Temperature measurement accuracy (-40 ° C~+125 ° C):
Local channel: ± 0.5 ° C
Remote channel: ± 1 ° C

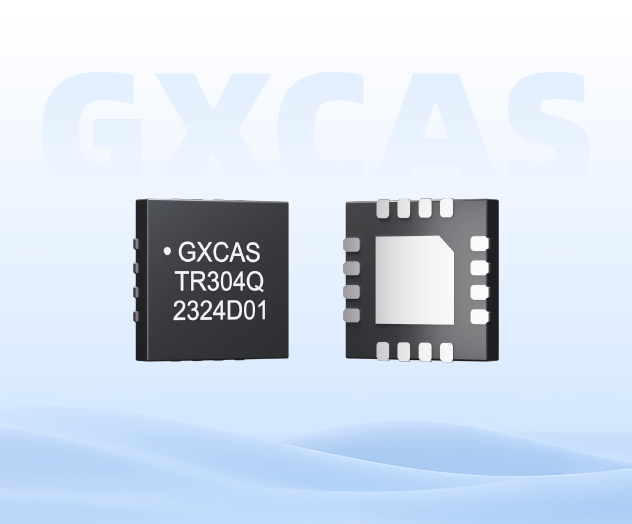

• Packaging form: 16 Pin QFN
• Package size: 3.00 mm × 3.00 mm
Power supply voltage: 2.7V~5.5V
I2C communication voltage: 1.6V~5.5V
Low static current (@ 3.3V, 27 ° C):
Local channel: 180 μ A
Remote channel: 360uA
Off mode: 1.2 μ A
Resolution: 16 bits, 0.0078125 ° C
• Digital output: compatible with SMBus and I2C interfaces
• Supports register block reading
Remote diode: with functions such as series resistance elimination, η factor correction, temperature imbalance correction, and open circuit detection
• Compatible with TMP464


2 Application Scenarios
• Servers and computers
• switch
• Secure data center
• Highly-integrated medical system
• Precision instruments and testing equipment
• Thermal management of LED lighting
• MCU, GPU, FPGA, DSP and CPU temperature monitoring


3. Description
emperature sensor compatible with SMBus and I2C interfaces. In addition to the local temperature of the chip, up to four remote diode areas can be monitored simultaneously. The typical application scenario of GXTR304 is real-time remote temperature monitoring of complex systems such as MCU, GPU and FPGA. With functions such as series resistance elimination, programmable η factor correction, programmable temperature offset correction and programmable temperature threshold, GXTR304 provides a reliable temperature monitoring solution with high precision and low power consumption. The local channel and 4 remote channels of GXTR304 can be independently programmed and controlled. When the temperature of the measured location exceeds the corresponding temperature threshold, an alarm will be triggered. Each channel of GXTR304 has a programmable temperature threshold hysteresis setting to avoid repeated alarms caused by the measured temperature being near the temperature threshold. The typical temperature measurement accuracy of the local channel and remote channel of GXTR304 is ±0.5°C and ±1°C respectively, and both provide a temperature measurement resolution of 0.0078125°C and a temperature measurement range of -55 ~ +150°C. The power supply voltage range of GXTR304 is 2.7 ~ 5.5V, and it provides a 3mm ×3 mm 16 Pin QFN package for integration into various systems.
