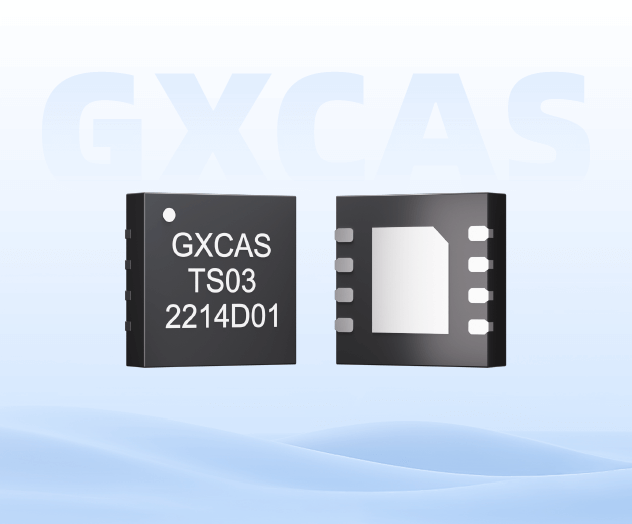

GXTS03
1.FEATURES
▪ Fully calibrated and linearized digital output
▪ Wide supply voltage range, from 1.6 V to 5.5 V
▪ I2C Interface with communication speeds up to 1MHz and two user selectable addresses
▪ Typical accuracy of ± 0.3 ° C
▪ Very fast start-up and measurement time
▪ Measures Temperatures from -45~130℃
▪ ± 0.1° C Accuracy from 35° C to +45° C
▪Thermometer Resolution is 16 Bits
▪ Converts Temperature to 16-Bit Digital Word in 2ms

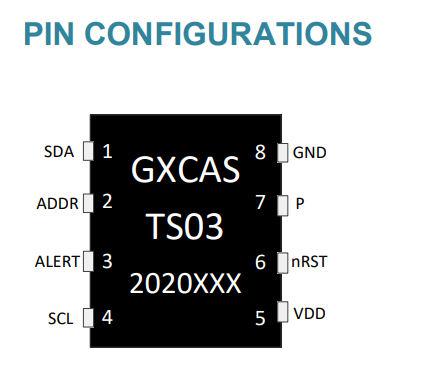

▪8-Pin DFN package
Ordering Information
| Order Number | Chip Model | Package | SPQ | Note |
| GXTS03D-T&R | GXTS03D | DFN8L (3mm*3mm) | 2000 | Tape & Reel |
| GXTS03T-T&R | GXTS03T | DFN8 (2.5mm*2.5mm) | 2000 | Tape & Reel |
Data Download
Product Parameters
| Communication method | I2C/SMBus | Working temperature range | -40℃~+125℃ |
|---|---|---|---|
| Highest accuracy | ±0.1℃ | Resolution | 16bit |
| Working Voltage | 1.6V-5.5V | Convert time | 1.5ms |
| Number of addresses | 2 | Standby Power Consumption | 0.1μA |
| Package form | DFN8 |
