GXTS02S

1 Basic Performance
•Temperature accuracy within 40 ° C to+125 ° C: ≤ 0.5 ° C

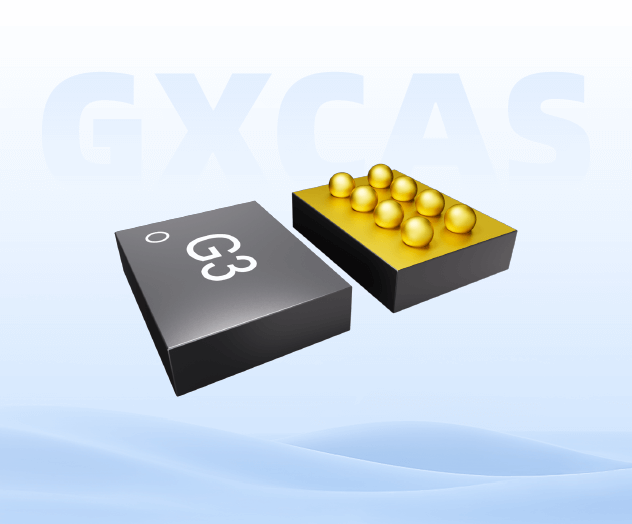

• Packaging: WLCSP (1.38mm × 1.81mm)
• Power supply voltage: 2.2 V~5.5 V
•Low power normal operation: ≤ 1.5 μ A (1Hz) Off mode: ≤ 100nA
• Resolution: 16 Bits
• Temperature conversion time 1.5ms
• Digital output: I2C interface

2 Application Scenarios
• Human skin temperature measurement
• Power supply temperature monitoring
• Thermal protection for external computer devices
• Laptop computer
• Battery management
• Office machines
• Constant temperature control
• Temperature of mechanical and electrical equipment
• General temperature measurement:
•Industrial Control
- Testing equipment
- Medical equipment

3. Chip Overview
GXTS02S is a high-precision, low-power digital temperature sensor that can replace NTC/PTC thermistors. The 16 bit ADC integrated inside the chip has a resolution as low as 0.00267 ° C. The GXTS02S can provide temperature accuracy of ≤ 0.5 ° C over the entire temperature range and has good temperature linearity. The accuracy of human body temperature measurement within the range of 30-42 degrees can reach ± 0.1 ° C. The GXTS02S is packaged in a 1.38mm × 1.81mm WLCSP and uses a standard I2C interface with two user configurable addresses. The rated operating voltage range of GXTS02S is 2.2V~5.5V, with an average power consumption as low as 1.5uA (at a temperature measurement frequency of 1Hz).
