GX175

1 Features
• Operating temperature range：-55°C ~ +125°C
• Temperature accuracy: ±0.5°C
• Supply voltage range: 1.6V ~ 5.5V
• Low quiescent current:
Temperature conversion: 45μA
Shutdown mode: 0.5μA
• Resolution: 9~12 bits (user defined)
• Digital output: SMBus, I²C interface compatibility

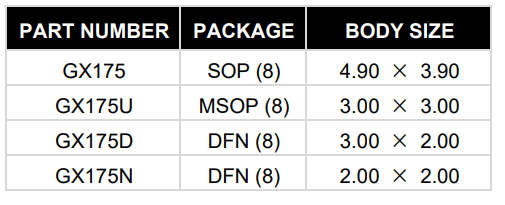

• Package Information：

2. Application scenarios
• Power supply temperature monitoring
• Computer peripheral thermal protection
• Laptop computers
• Cell phones
• Battery management
• Office machines
• Thermostat controls
• Electro mechanical device temperature

3. Chip Overview
 The GX175 is a high-accuracy, low-power, NTC / PTC thermistor replacement digital temperature sensor for temperature measurement in communications, computer, consumer, environmental, industrial, and instrumentation applications. The GX175 provides ≤ ±0.5°C temperature accuracy over the normal operating range of -40°C to +125°C with good temperature linearity. The rated operating voltage range of the GX175 is 1.6V ~ 5.5V, and the quiescent current in actual temperature conversion is less than 45μA. The on-chip analog-to-digital converter (ADC) provides a temperature resolution of 0.0625°C.

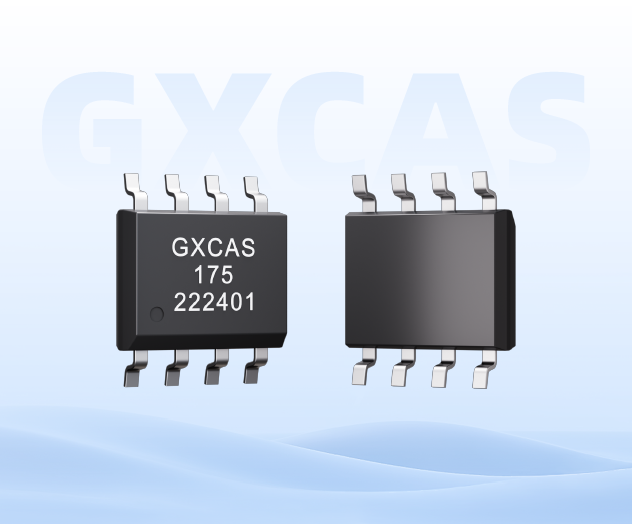

The GX175 is available in an LM75-compatible 8-Pin MSOP / SOP package that supports SMBus and I²C interfaces. Up to 27 GX175 device addresses addresses can be mounted on one bus. The GX175 provides SMBus Alert function.

Ordering Information
