GX112

1 Basic Performance

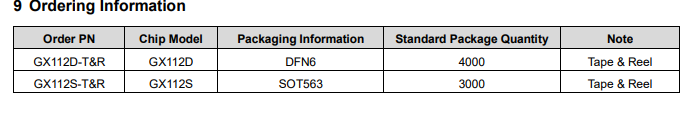

Product codes: GX112S, GX112D
• Temperature measurement range: -55 ° C~+150 ° C
•Temperature measurement accuracy: ± 0.5 ° C (-40 ° C~+125 ° C)

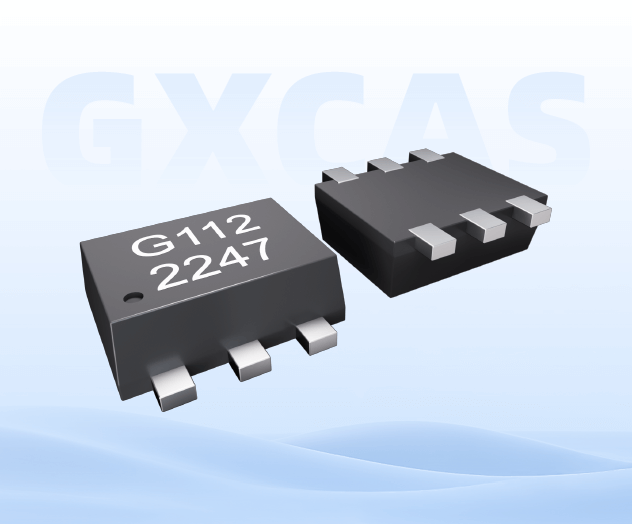

• Packaging form: 6-pin SOT563 (GX112S)

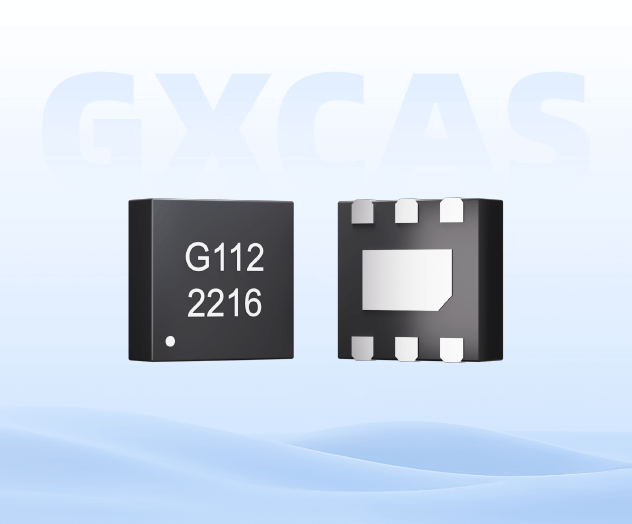

 6-Pin DFN6（GX112D）
• Package size: 1.60 mm × 1.60 mm
•Power supply voltage: 1.4V~5.5V
• Low static current
•Normal operation: ≤ 10 μ A (4Hz)
Off mode: ≤ 1 μ A
• Resolution: 12bits, 0.0625 ° C
• Digital output: compatible with SMBus and I2C interfaces


2 Application Scenarios
• Portable, battery powered applications
• Power supply temperature monitoring
• Thermal protection for external computer devices
• Laptop computer
• Battery management
• Office machines
• Constant temperature control
• Temperature of mechanical and electrical equipment
• General temperature measurement:
Industrial Control
- Testing equipment

3. Chip Overview
The GX112 is a digital temperature sensor with high-accuracy, low-power, and NTC/PTC thermistor replacements. It can be used for extended temperature measurement in communication, computer, consumer electronics, environmental, industrial and instrumentation applications. The GX112 provides ≤±0.5°C temperature accuracy with good temperature linearity over the normal operating range of -40°C to +125°C. The GX112 can provide extended temperature measurement mode, extending the temperature measurement range from -55°C to +150°C.
The rated working voltage range of the GX112 is 1.4V~5.5V, and the maximum quiescent current in the entire working rage is 10µA (temperature measurement frequency 4Hz). The on-chip 12-bit ADC offers resolutions down to 0.0625°C.
The GX112 adopts SOT563 / DFN6 package of 1.6mm × 1.6mm, is compatible with SMBus and I2C interface, and allows up to four devices on one bus. The device also features an SMBus alert function.
