GX100

1 Basic Performance
•Product codes: GX100, GX101
• Temperature measurement range: -55 ° C~+125 ° C
•Temperature measurement accuracy: ± 0.5 ° C (-40 ° C~+125 ° C)

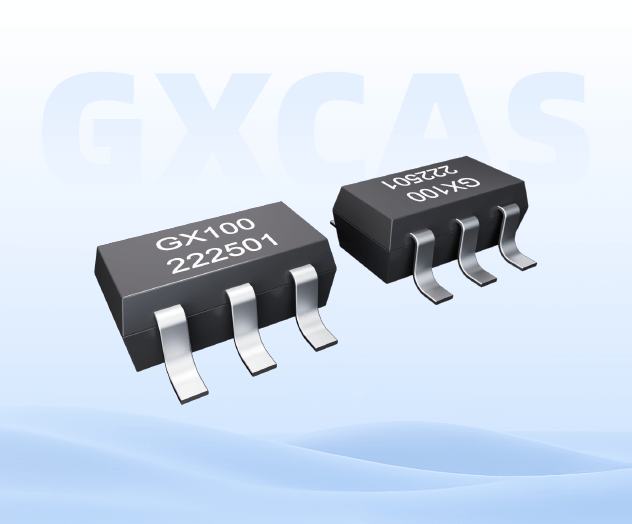

• Packaging form: 6-pin SOT-23
• Package size: 2.90 mm × 1.60 mm
•Power supply voltage: 2.7V~5.5V
•Low static current temperature conversion: ≤ 40 μ A
•Off mode: ≤ 0.5 μ A • Resolution: 12bits, 0.0625 ° C
• Digital output: compatible with SMBus ™、 I 2C interface

2 Application Scenarios
• Power supply temperature monitoring
• Laptop computer
• Battery management
• Constant temperature control

3. Chip Overview
GX100 and GX101 are two high-precision, low-power digital temperature sensors that can replace NTC/PTC thermistors. They can be used for temperature measurement in communication, computer, consumer electronics, environmental, industrial, and instrumentation applications. GX100 and GX101 can provide temperature accuracy of ≤± 0.5 ° C within the normal operating range of -40 ° C to+125 ° C, and have good temperature linearity. The rated operating voltage range of GX100 and GX101 is 2.7~5.5V, and the static operating current during temperature conversion is less than 40 μ A. The 12 bit ADC integrated inside the chip has a resolution as low as 0.0625 ° C. The GX100 and GX101 are packaged in a 2.9mm × 1.6mm SOT-23 (6) package, compatible with SMBus and I2C interfaces, and have SMBus alarm function.
