GXT110

1 Features
• Optimized for human body temperature measurement
• Accuracy: ± 0.1°C (+30°C to + 45°C)
• Supply range: 1.6V ~ 5.5V
• Operating temperature: -55°C ~ +150°C
• Active current: 40μA
• Standby current: 0.5μA
• Resolution: 16bits (0.0078125°C)
• Interface: S-Bus

2 Applications
• Medical thermometer
• Wearable temperature monitoring
• High-precision temperature probe

3 Description
GXT110 is a high-precision digital temperature sensor optimized for human body temperature measurement. It can achieve 16-bit (0.0078125°C) temperature output without any external temperature sensing unit, and has a temperature measurement error of less than ±0.1°C in the range of 30℃~45℃.

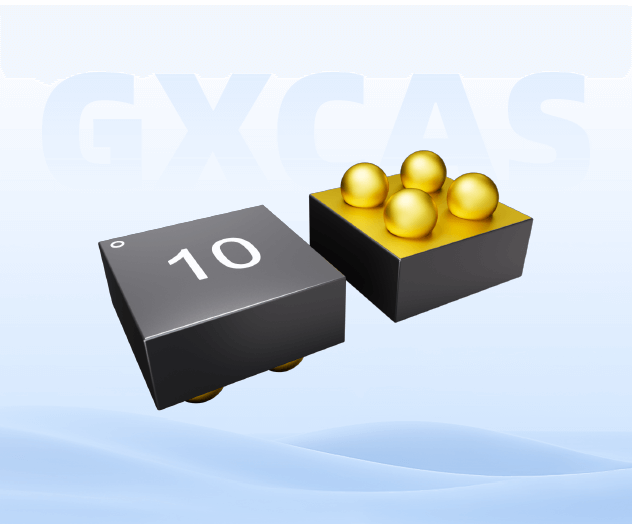

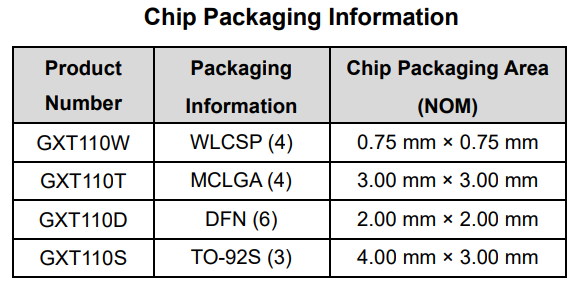

GXT110 supports two packaging forms: WLCSP-4 and MCLGA-4. The former is extremely small and suitable for applications with extremely limited space; the latter can conduct heat rapidly and is designed for measuring the surface temperature of human skin.

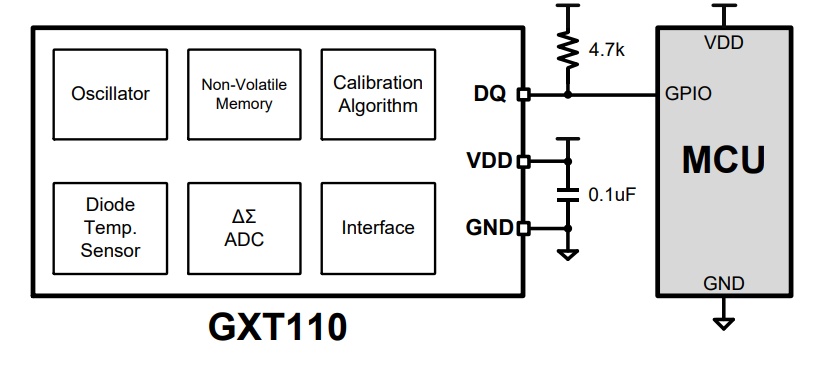

GXT110 supports single-line communication and can mount up to 16 slaves, requiring only a single signal line to obtain temperature output.
