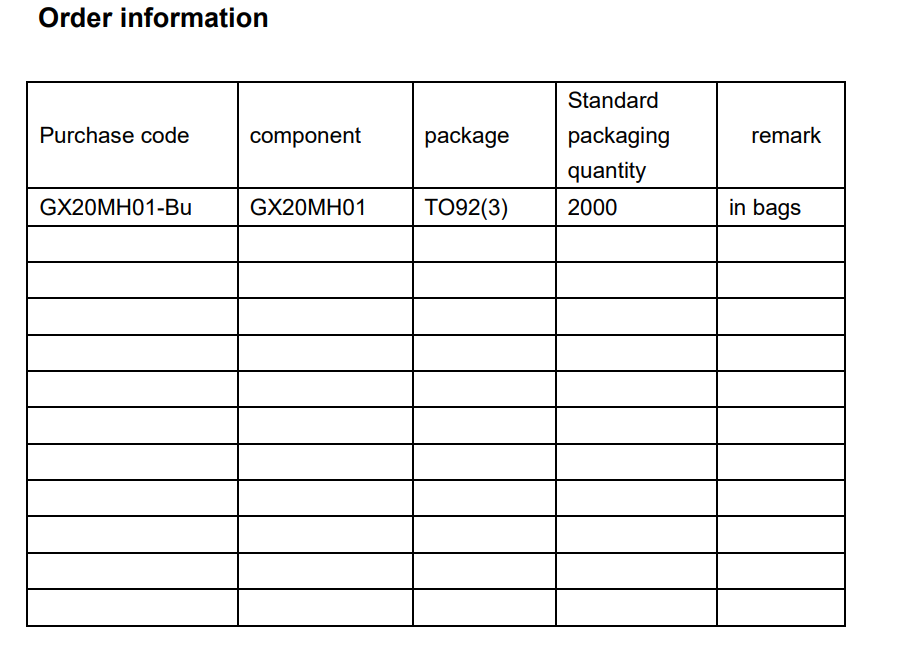

GX20MH01

1 . Fundamental characteristics
• A single port pin is required to communicate with a single bus interface
• Each chip has a globally unique 64-bit serial number
• With the multi-point distributed temperature measurement function
• No peripheral components are required
• Power can be supplied through the data line; the power supply voltage range is 2.5V~5.5V
• The measurement range is -55°C to +125°C (-67°F to +257°F)
• The accuracy was ± 0.1 C in the range from 0℃ to 50
• At the 14-bit accuracy, the temperature conversion speed is less than 1.6s
• With user-defined non-volatile temperature alarm settings
• The alarm search command identifies and identifies the device that exceeds the programmed temperature
• Super-static protection capability：HBM>8000V MM >800V

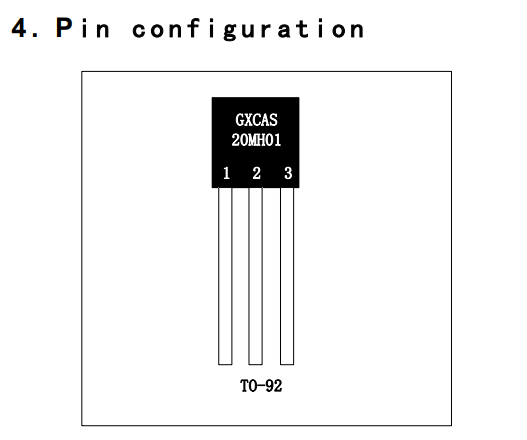

• The TO-92 package of the 3-feet

2 . Application scenarios
• Body temperature measurement
• Drug storage
• Medical equipment and other fields


3 . Chip overview

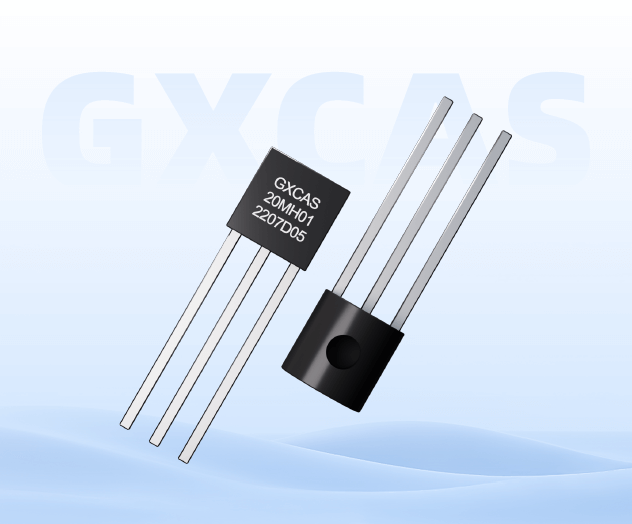

GX20MH01 Digital thermometer provides temperature measurement at 14bit resolution with a lower temperature limit through a programmable non-volatile storage unit and upper limit alarm.
GX20MH01 Use the single bus protocol to communicate with the upper computer, requiring only one signal line and one ground line. It has a temperature measurement range ranging from-55℃ to + 125℃. Test accuracy in the range of 0℃ to + 50℃ can reach ± 0.1℃. In addition, it can work in parasitic mode, directly powering the chip through signal lines, thus without requiring additional power supply. Each GX20MH01 has a globally unique 64-bit serial number, which can network multiple GX20MH01 in series on the same documentary bus, and requires only one processor to control multiple GX20MH01 distributed in a large area. This networking mode is especially suitable for HVAC environmental control, construction, equipment, food situation temperature measurement, industrial temperature measurement, process monitoring and control and other application fields.
