GX1832

1 Features
• Direct Replacement for NTC Thermistors
• Accury: ± 0.5°C
• Supply Range: 2.6V ~ 5.5V
• Temperate Range: -55°C ~ +150°C
• Active Current: 40μA
• Shutdown Current: 0.5μA
• Resolution: 12 bits (0.0625°C)
• Interface: 1-Wire

2 Applications
• Digital Output Wired Probes
• Industrial Control
• Cold-Chain Transportation
• Enterprise Servers

3 Description

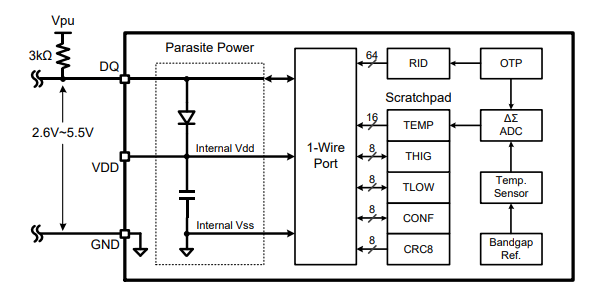

The GX1832 is a fully integrated digital temperature sensor that provides a 12-bit temperature result with a resolution of 0.0625°C and an accuracy of up to ±0.5°C with no calibration.The GX1832 is compatible with the one-wire interface and supports up to 32 devices on a single bus. The GX1832 can be easily used as a two wire digital temperature probe or as a direct replace-mentfor NTC thermistors.
